Thickness, length, arc
How do I measure a screen so it fits?
Machines get modified. A model number is the start, not the finish. Measure thickness, overall length, and back-arc length. A photo of the screen in the mill helps.
If you cannot pull the screen, call anyway. We would rather talk through the measurement than cut a miss.
AGS supplies custom-cut screens. We confirm measurements before we cut. We do not guess from a shopping cart.

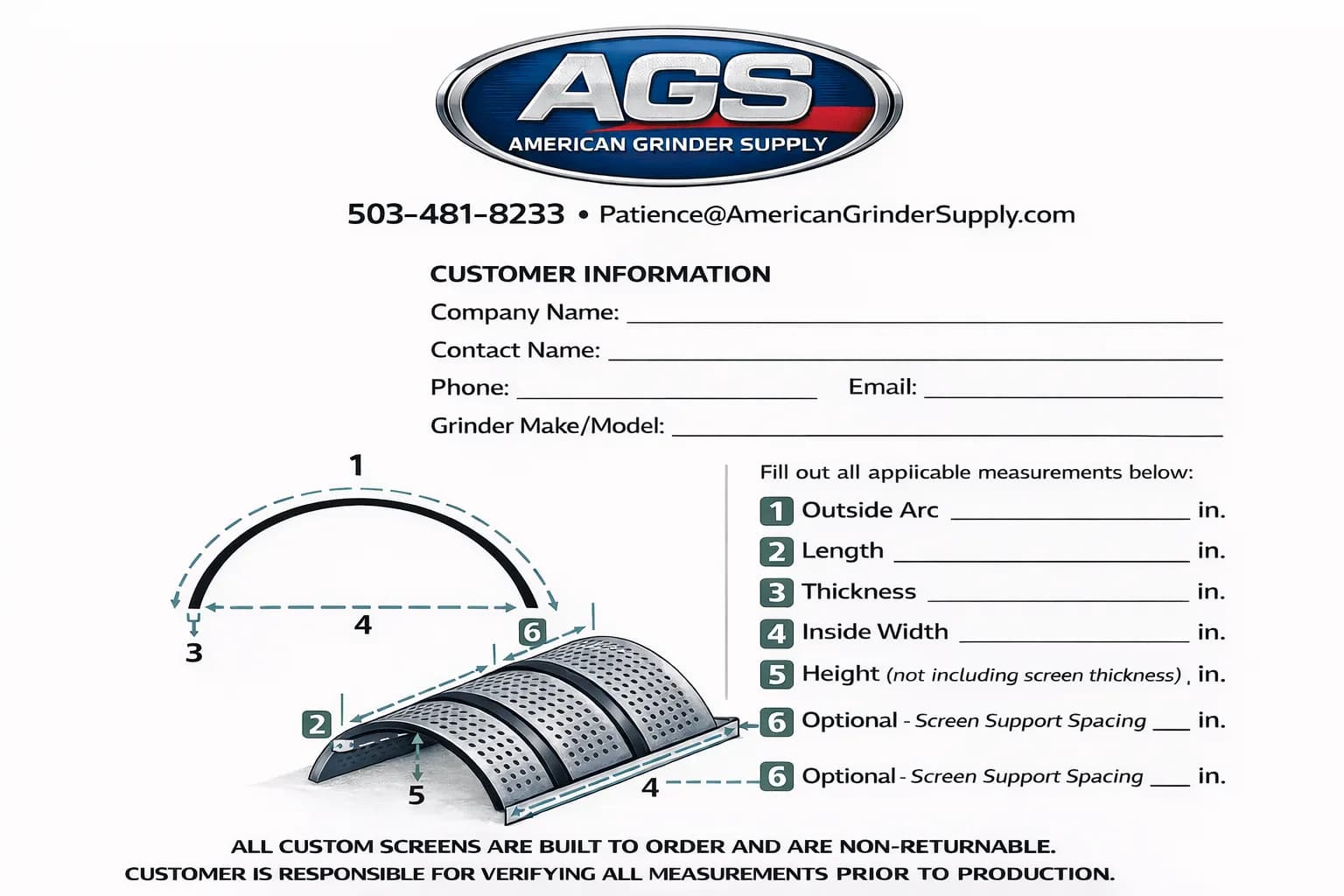

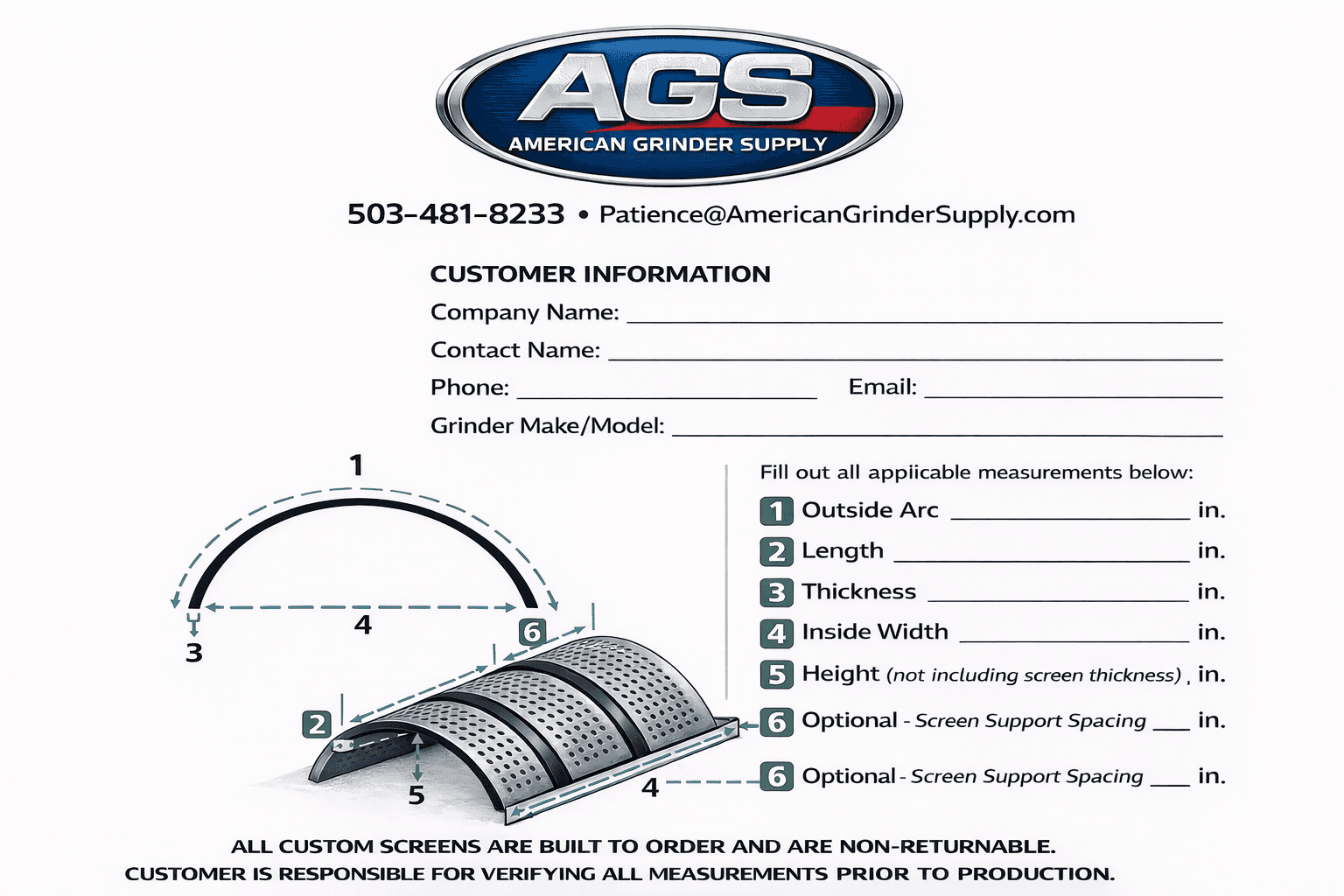

Open the measurement sheet if the labels are too small on this screen.
01
Measure thickness
Plate thickness first. A model number is not a thickness.
02
Measure overall length
End to end on the screen you have, not the catalog drawing.
03
Measure back-arc
The curve of the chamber. A photo of the screen in the mill helps if you cannot pull it.
04
Photograph the part
Worn holes, cracks, and how it sits in the mill beat a guess.
05
Call before we cut
AGS confirms measurements before we cut. One call: (503) 481-8233.
More questions
Have this ready
Before you call
- Make
- Model
- Serial
- Tub or horizontal
- What you are grinding
- What is worn
- A photo of the part in the mill
AGS supplies the part. We confirm the fit before anything is cut or shipped.
Tell us the machine.
We'll confirm the fit.
Call first. AGS supplies the part. We confirm the fit before anything is cut or shipped.
Call (503) 481-8233
